The Next Generation MAX7219 display from LoungePilot.
A completely re-engineered MAX7219 display system. Now you can easily have 3, 4, 5 or 6 digit displays without the need for messy soldering displays to chips or the "traditional" tubes.
The system consists of two parts:

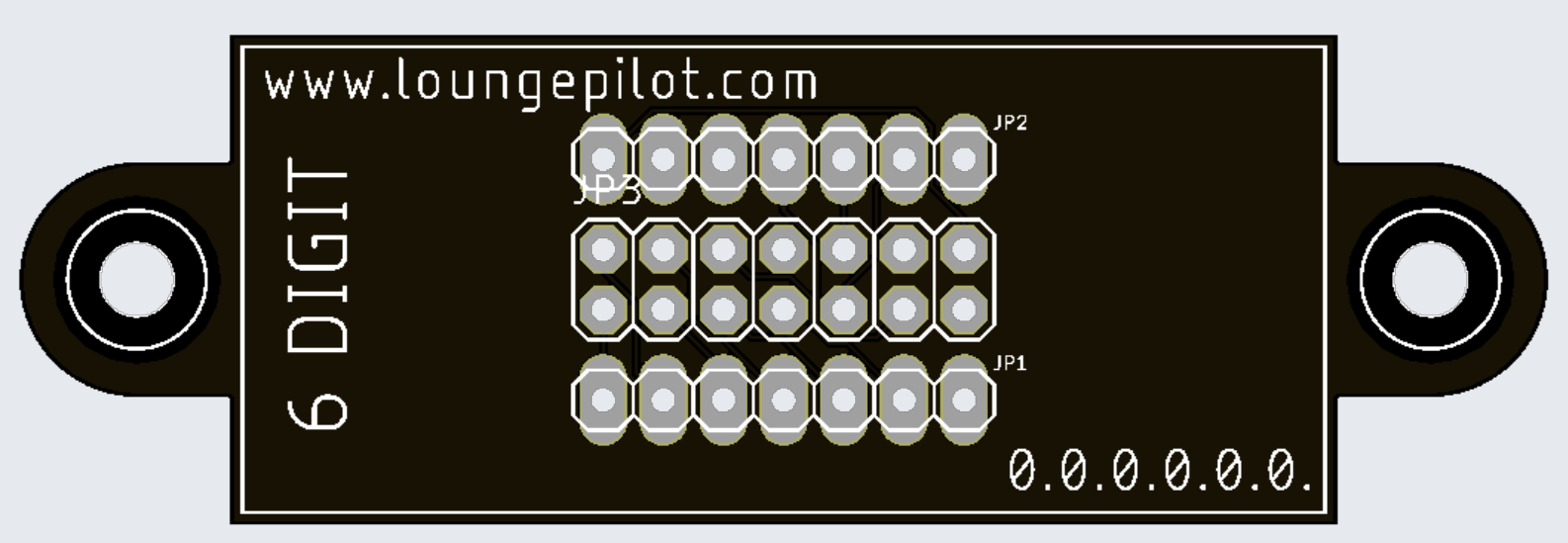

1) Display driver board with pluggable Maxim Chip.

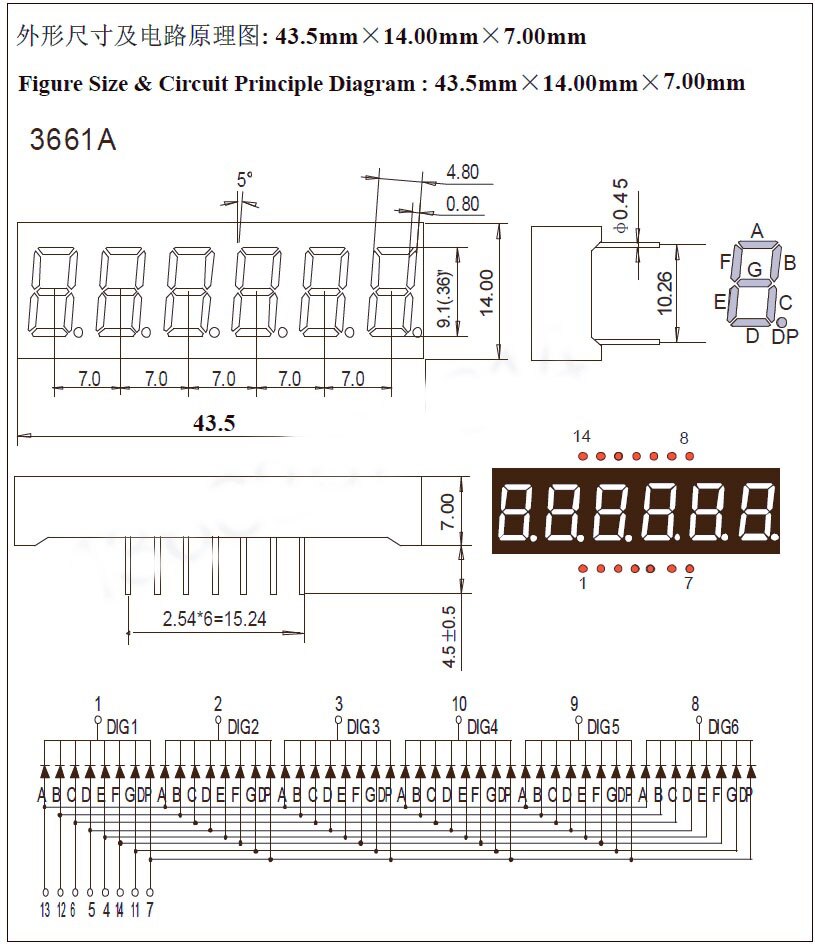

2) The display board in 3,4,5 or 6 digit configuration.
With this level of flexibility you can have the number of digits to meet your exact needs, and can choose any colour of display you can source. The boards are extremely compact so fit very nicely into your build. Easy mount design so no more having to figure out how you can fit an 8 digit board into your build when you only want 5 digits! And if you run into a problem like an accidental short circuit you can simply unplug the display driver board, replace the chip and plug back in and you are good to go! You don't even need to remove the display from your build, just unplug the driver board. All modules are tested before dispatch.

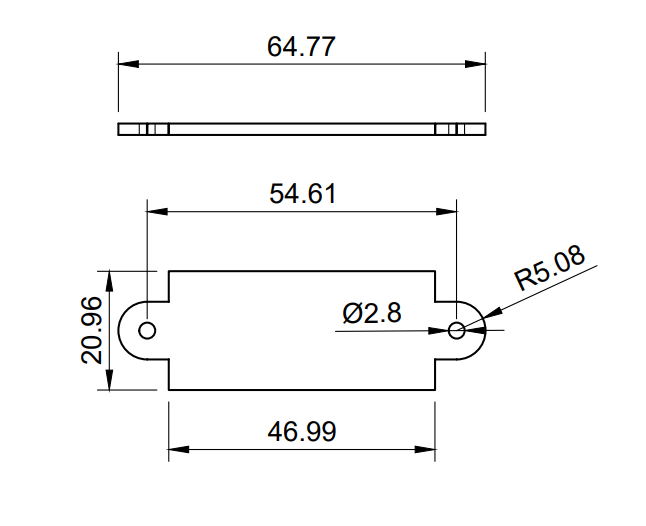

Dimensions: 64.77mm x 20.32mm
